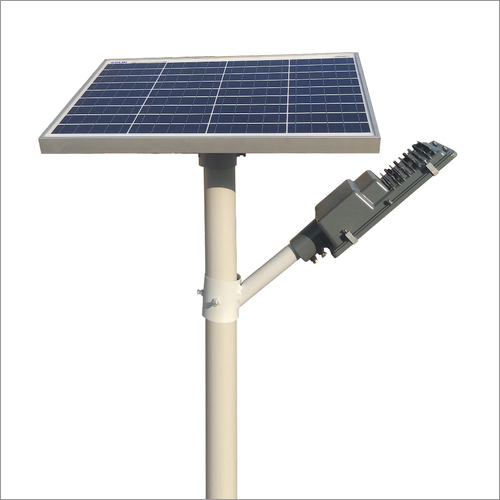

12W Glass Model Semi Integrated Solar Street Light

Send Inquiry

Request To Call Back

12W Glass Model Semi Integrated Solar Street Light

Name: 12W Glass Model Semi Integrated Solar Street Light
Brand: FEVINO INDUSTRIES LLP
Price: 5800 INR
Availability: InStock

Price 5800 INR/ Unit

Get a Price/Quote

MOQ : 10 Units

12W Glass Model Semi Integrated Solar Street Light Specification

Thickness
Glass cover: 3-5 mm

Surface Finish
Anti-corrosion Powder Coated

Weight
2.8 kg (approx.)

Pole Type
Semi Integrated

Usage & Applications
Outdoor Street Lighting, Pathways, Roads, Gardens

Mounting Type
Pole Mount, Wall Mount

Features
Dusk to dawn automatic operation, Motion sensor, Maintenance-free, Weatherproof, Long life

Product Type
Semi Integrated Solar Street Light (Glass Model)

Material
Plastic, Metal

Rated Power
12W

Length
Not Applicable (Fixture only)

Voltage
12.8V (System Voltage)

Lighting
LED

Input Voltage
Solar (PV Panel Input)

Working Temperature
-10C to 60C

Rated Current
1A

Socket
Integrated (No detachable socket required)

Color
Cool White or Natural White (6000K-6500K)

Height
Fixture: 50-80 mm (approx.), for mounting on standard poles up to 4-6 m

Cable Length
1 meter (panel to fixture) supplied

Lumens
1200-1350 lm

Solar Panel
18W - 24W Monocrystalline or Polycrystalline, A-grade

LED Driver Efficiency
>90%

Operating Modes
Auto, Dim, Motion Sensing

Protection
Overcharge, Deep Discharge, Short Circuit, Reverse Polarity

Battery Type
LiFePO4 (Lithium Iron Phosphate), 12.8V, 12Ah

Installation Height Recommended
3-5 meters

Charge Controller
Inbuilt MPPT/PWM Smart Controller

Backup Time
Up to 24 hours on single charge (mode dependent)

Sensor Type
PIR Motion Sensor

12W Glass Model Semi Integrated Solar Street Light Trade Information

Minimum Order Quantity
10 Units

Supply Ability
100 Units Per Day

Delivery Time
10 Days

Main Domestic Market
All India

About 12W Glass Model Semi Integrated Solar Street Light

We are instrumental in manufacturing & supplying an exclusive assortment of 12W Glass Model Semi Integrated Solar Street Light which is resistant to adverse weather conditions and require minimum maintenance. The offered products are perfect to be utilized in areas that need to illuminate but where mains supply is not available. The offered products are tested by our quality controllers on various parameters of quality in order to ensure their flawlessness. 12W Glass Model Semi Integrated Solar Street Light is accessible in abundant high-efficiency crystalline certified solar modules.

Product details

Body Material	Ceramic
Input Voltage	12W
IP Rating	IP66
Certification	ISI
Usage/Application	OUTDOOR
Lighting Type	LED

Advanced Solar Technology

Powered by high-grade monocrystalline or polycrystalline solar panels and a LiFePO4 battery, this solar street light ensures superior energy conversion rates and long operational life. The inbuilt MPPT/PWM charge controller optimizes charging efficiency, while integrated overcharge and deep discharge protection guarantees safety and reliability throughout its lifespan.

Versatile Outdoor Lighting Applications

Designed for outdoor environments, this solar street light is perfectly suited for streets, footpaths, gardens, and public spaces. The fixture's weatherproof build and maintenance-free design, coupled with selectable cool white or natural white illumination, ensure consistent performance across varied outdoor conditions. Multiple sensor-driven modes maximize energy savings and user convenience.

Effortless Installation and User-Friendly Operation

Engineered for easy mounting on wall or pole surfaces at heights between 3-5 meters, this semi-integrated unit comes with a 1-meter connecting cable. Dusk-to-dawn automatic lighting, motion sensing, and dimming features require no manual intervention, making it ideal for users seeking hassle-free lighting solutions with maximum utility and safety.

FAQ's of 12W Glass Model Semi Integrated Solar Street Light:

Q: How is the 12W Glass Model Semi Integrated Solar Street Light installed?

A: The street light is designed for both pole and wall mounting. It is recommended to mount the fixture at a height between 3-5 meters using standard poles up to 4-6 meters. A 1-meter cable connects the solar panel to the fixture, simplifying installation. Professional installation is advised for optimal alignment and security.

Q: What are the main benefits of using this solar street light for outdoor areas?

A: Key advantages include maintenance-free operation, weatherproof durability, long backup time (up to 24 hours on a single charge), and automated dusk-to-dawn functionality. The PIR motion sensor and dimming feature enhance energy savings, while its anti-corrosion finish ensures longevity in diverse climates.

Q: Which types of solar panels are compatible with this model?

A: This street light supports both monocrystalline and polycrystalline panels within the 18W-24W range, ensuring flexible sourcing and efficient performance based on site availability and lighting needs.

Q: What kind of battery does the fixture use, and how long does it last?

A: The fixture utilizes a 12.8V 12Ah LiFePO4 (Lithium Iron Phosphate) battery. Designed for reliability and deep cycling, it provides up to 24 hours of backup (mode-dependent), requires minimal maintenance, and offers a long operational life compared to standard battery chemistries.

Q: Where can this solar street light be effectively used?

A: Ideal for streets, roads, pathways, gardens, and residential complexes, this fixture is suitable for a wide range of outdoor settings. Its weatherproof build and efficient illumination make it a versatile solution for public and private lighting needs in urban and rural locations.

Q: How does the motion sensor and operating mode work?

A: The built-in PIR motion sensor detects movement and automatically switches the lighting mode between full brightness and dim mode, depending on activity. The dusk-to-dawn automation ensures lights operate only when needed, maximizing energy efficiency and security after dark.

Q: What safety and protection features does this solar street light provide?

A: The system includes safeguards against overcharging, deep discharge, short circuits, and reverse polarity, all managed by the inbuilt smart controller. This comprehensive protection ensures safe operation and extends the equipment's life span.
